Model No: RB 720


Features:
1, Smoothly running saw blade height and angle adjustment via hand wheel;
2, Led shows saw blade tilt degree;

3, Double roller carriage system to guarantee absolute precision and smooth running;
4, Lubrication-free, torsion-resistance and low maintenance;
5, Two different cutting speeds as standard;
6, Table extensions enable convenient working conditions;
7, Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.


Specification:

Dimension of sliding table 3200mm*430mm
Width of cut 1250mm
Maximum height of cut 90°/45° 100/75mm
Table height 850mm
Tilting style/blade up&down Manual/Manual
Maximum main saw blade size 350mm*30mm
Scoring saw diameter 120mm*20mm
Dust Collector inlet 100mm
Main power/Scoring power 5.5Kw/0.75Kw
Voltage 415V/400V/380V/220V
Speed of main saw spindle 4000/6000rpm
Speed of scoring saw blade 7000rpm
Overall dimensions 3200*3150*900mm
N.W/G.W 800KGS/900KGS

Photos:


Side view(strong frame structure machine body):


Back view:










Frotal face and controller button:

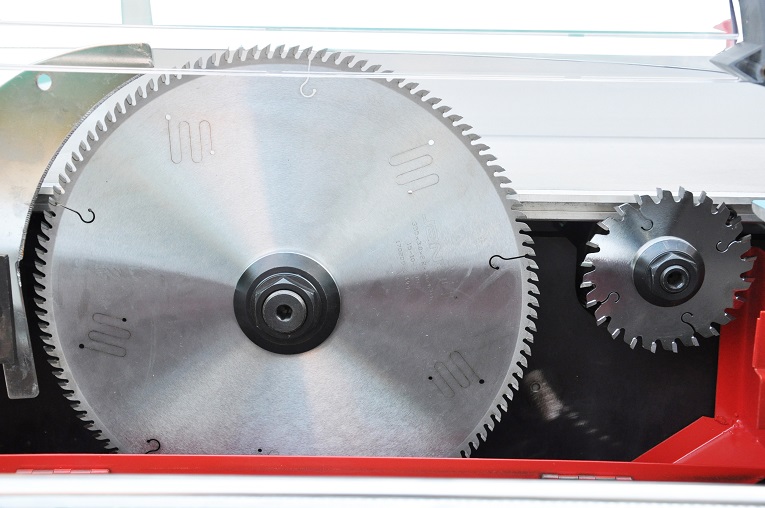

305mm(350mm Max.) big blade and 120mm scoring blade:


Advanced protection hood:




Handle wheel for 45 degree tilting and led readout titling degree:


Main blade rise&fall and scoring blade adjustment device:


100mm diameter of inlet for sawdust:


430mm width double round rod guide rail with side bar:


Multiple stopping positions for sliding table:


Strong rotating arm:


Strong gross fence:


Saw internal unit:
