RB 73213-Three rows drilling machine - drilling machine,drilling machine,line boring machine - RBWOOD-specialist in woodworking machines since 1998.

Products Iist

Multi rows drilling machine

home > Products > Multi rows drilling machine > details

Model no.: RB 73213

Feature:

PLC industrial control system, touch screen,powerful functions, low failure rate
Drilling large range, all driller with fast connection
Imported driller, motor, linear guide rail and slider
Machine tool parts were produced by high quality steel, high-temperature annealing(stress relief) never deformed
Equipped with digital calculator, work more efficiently

Specification:

Max. drilling diameter	35mm
Max. drilling depth	60mm
Drilling distance	140-1700mm
Number of drilling shaft	*213**
Speed of shaft	2800rpm
Motor power	*1.5kw3**
Air pressure	0.6-0.8Mpa
Overall size	*260025001600mm*
Packing size	*260011001500mm*
N.W/G.W	700KGS/750KGS

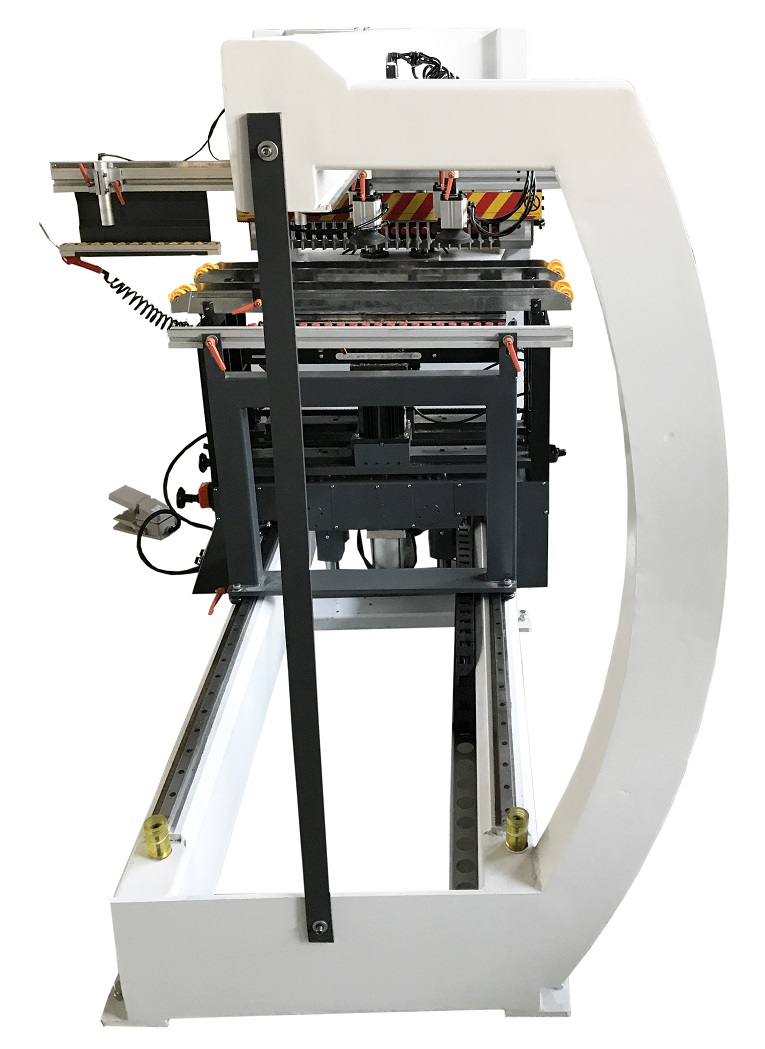

Photos:

Woring videos:
