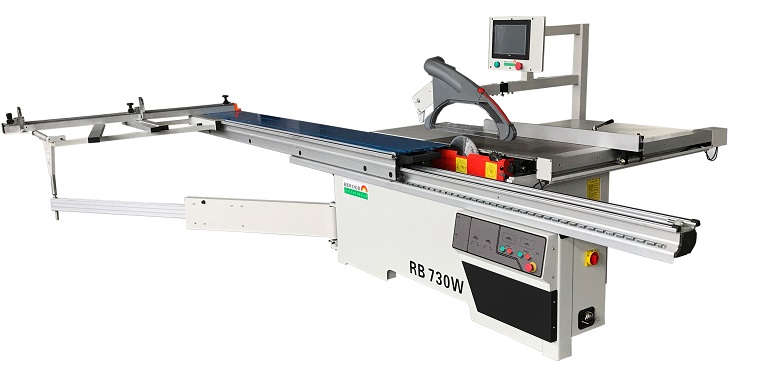

Model No.: RB 730W

Features:


1,Angle adjustment and saw blades rise/fall controlled by PLC;
2,Electric control the movement of rip fence;
3,Double roller carriage system to guarantee absolute precision and smooth running;
4,High quality and frame structure machine body;
5,Equipped scoring unit powered by a separate motor;
6,Perfect for cutting heavy large boards and plates;
7,Three different cutting speeds as standard;
8,Very accurate and solid rip fence with fine adjustment function;
9,Table extensions enable convenient working conditions;
10,Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.



Specification:


Dimension of sliding table 3200mm*430mm
Width of cut 1150mm
Maximum height of cut 90°/45° 120/95mm
Table height 850mm
Tilting style/blade up&down Electric/Electric
Maximum main saw blade size 400mm*30mm
Scoring saw diameter 120mm*20mm
Dust Collector inlet 100mm
Main power/Scoring power 5.5Kw/1.1Kw
Voltage 415V/400V/380V/220V
Speed of main saw spindle 3000/4000/5000rpm
Speed of scoring saw blade 8800rpm
Overall dimensions 3200*3150*900mm
N.W/G.W 850KGS/950KGS
