rbwood

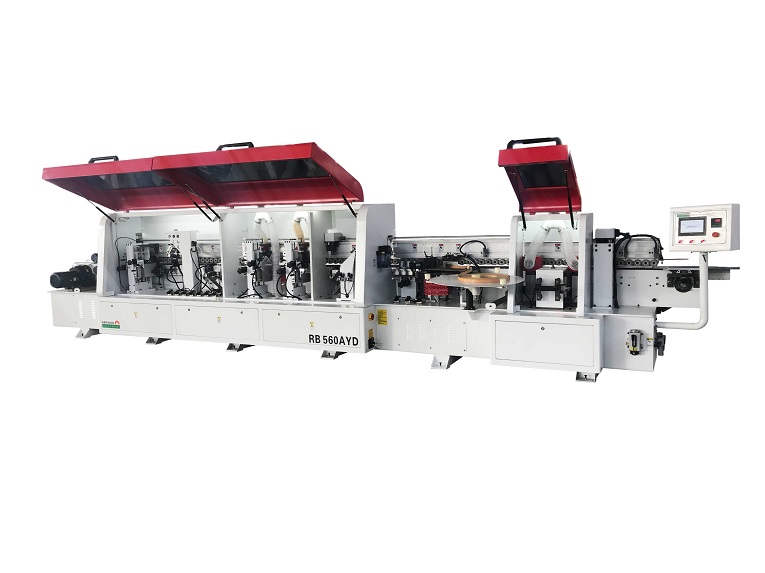

MODEL: RB 560AYD

Specification:
Edge thickness 0.4-3mm
Tape thickness 12-62mm
Panel thickness 10-60mm
Heating power 2.0kw
Preheating power 350w
Conveyor belt motor power 2.2kw
Pre-milling motor power 2.2kw*2@12000rpm
Glue shaft motor power 0.75kw
End cutting motor power 0.37 kw*2 @12000rpm
Rough trimming motor power 0.75 kw*2 @ 12000rpm
Fine trimming motor power 0.75 kw*2 @ 12000rpm
Buffing motor power 0.37 kw*2 @ 1350rpm
Electrical lifting beam motor power 250w
Conveyor belt speed 12-20m/min
Air pressure 0.7Mpa
Total motor power 16kw
Dimension 7650*1000*1600mm
Net weight 2185kgs

Photos:


































Videos:
