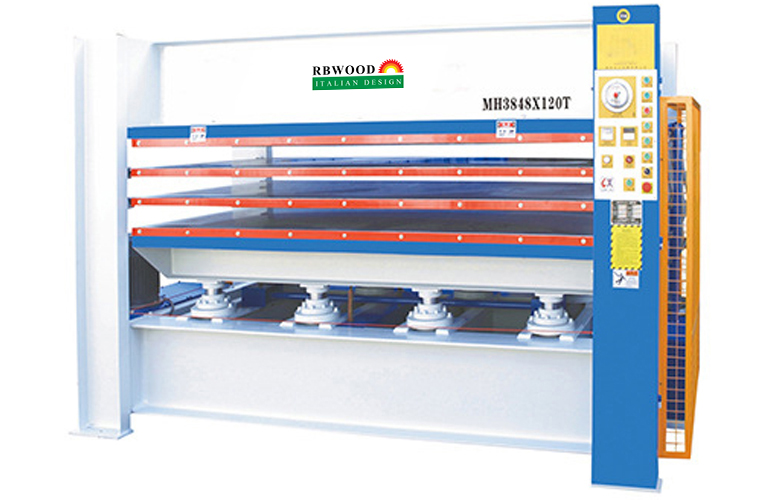

| Model | MH3848X120T(1layer) | MH3848X120T(2layers) | MH3848X120T(3layers) |
| Press plate size | 1300*2500*42mm | 1300*2500*42mm | 1300*2500*42mm |
| Max. Pressure | 120T | 120T | 120T |
| Pressure of hydraulic | 254kg/cm² | 254kg/cm² | 254kg/cm² |
| Max. opening | 380mm | 170mm | 100mm |
| Hydraulic cylinder | ɸ100*8pcs | ɸ100*8pcs | ɸ100*8pcs |
| Hydraulic motor | 2.2kw | 2.2kw | 2.2kw |
| Hot oil pump power | 1.5kw | 1.5kw | 1.5kw |
| Heating pipe power | 36kw | 36kw | 36kw |
| Overall dimension | 3700*1660*2100mm | 3700*1660*2100mm | 3700*1660*2100mm |
| Net weight | 6485kg | 7400kg | 8500kg |
