Features:
Smoothly running saw blade height and angle adjustment via hand wheel
Analog read out of saw blade adjustment(height and tilt)
Double roller carriage system to guarantee absolute precision and smooth running
Lubrication-free, torsion-resistance and low maintenance
Two different cutting speeds as standard

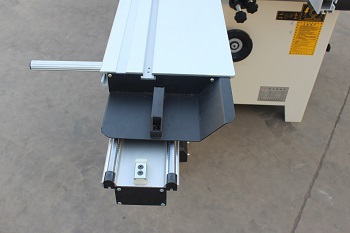

Table extensions enable convenient working conditions
Heavy machine with massive, rugged by precise construction for max. Cutting accuracy
Specification:
| Dimension of sliding table |
1600mm*375mm |
| Width of cut |
1150mm |
| Maximum height of cut 90°/45° |
75/50mm |
| Table height |
850mm |
| Tilting style and blade rise/fall |
Manual/Manual |
| Maximum main saw blade size |
305mm*30mm |
| Scoring saw diameter |
120mm*20mm |
| Dust Collector inlet |
100mm |
| Main power/Scoring power |
4.0Kw/0.75Kw |
| Voltage |
380V |
| Speed of main saw spindle |
4000/6000rpm |
| Speed of scoring saw blade |
8000rpm |
| Overall dimensions |
1600*2450*900mm |
| N.W/G.W |
400KGS/500KGS
|
