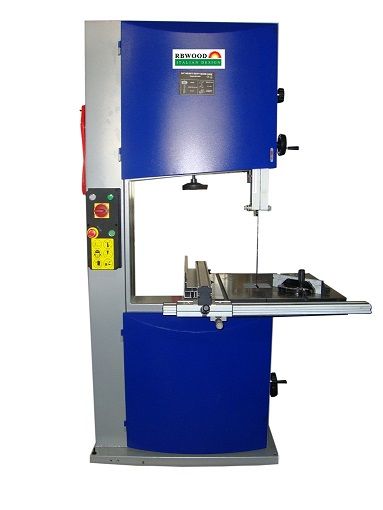

Cast iron upper and lower wheels with braking motor fitted for prefect working performance Parallel fence with micro adjustment function Two windows to show the saw blade tension(optional) and running position Big size working table area for prefect performance Arc shape doors for modern appearance Quick clamping lever and blade tension adjustment on the back of the machine
Specification:
Motor power 4000w Saw wheel diameter 610mm Blade size(LxW)(mm) 4590x19~38.1 Blade teeth per inch 3TH Blade line speed(50HZ) 26m/s Table pivot capacity 0~45° Table size 700x610mm Max.working height 430mm Max.working width 600mm Dust extension 100mm G.W./N.W. 365/330kgs Packing dimensions 1030x730x2218mm Quantity per 20'/40' container 15/33 sets
